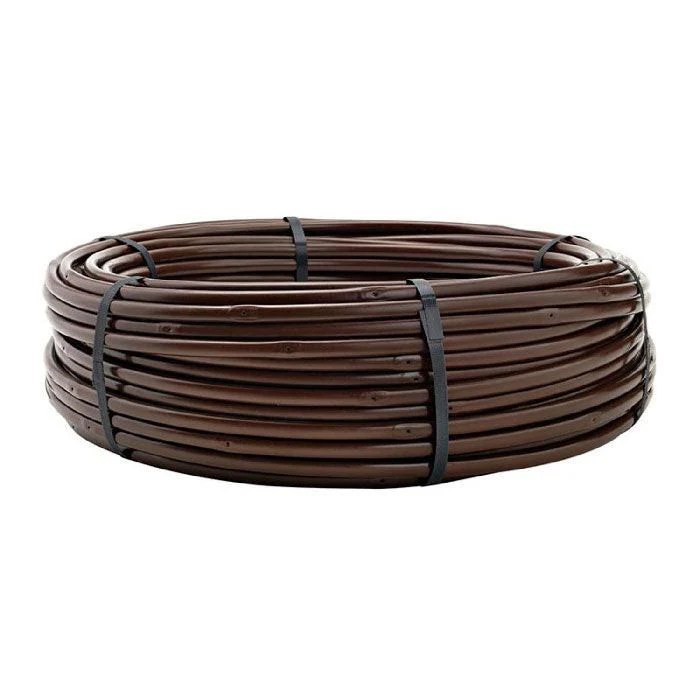

Netafim Techline CV Dripline

Techline® CV

Netafim continues to be the leader in innovation in the Landscape & Turf dripline market by introducing Techline™ CV manufactured with post-consumer recycled polyethylene. Techline™ CV Dripline has the most technologically advanced dripper available. Techline™ CV’s Check Valve feature keeps water from draining out of the dripline after zone shut-down.

Tubing O.D. is 17mm or 0.66 in.

---

Why Techline™ CV?

• Laser Etched, For Easy Identification
• Made With Post-Consumer Recycled Material
• Qualifies for Use on Leed Projects
• UV Resistant Tubing
• Self-Contained, One-Piece Dripline Construction

---

Product Advantages

• Unique Patented Emitter Design with Physical Root Barrier
  Offset flow path, extra-large bath area, and raised outlet prevent root intrusion without chemical reliance.
• Pressure Compensating
  Precise and equal amounts of water are delivered over a broad pressure range.
• Continuous Self-Flushing Emitter Design
  Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted emitter operation.
• Emitter With Anti-Siphon Feature
  Prevents ingestion of debris into tubing caused by vacuum.

---

Applications

• Reclaimed (recycled) water use
• Subsurface or on-surface installations
• Turf, shrubs, trees and flowers
• Sports turf, tennis courts, golf courses
• Slopes
• Longer lateral runs
• Curved, angular or narrow planting areas
• High traffic/high liability areas
• Areas subject to vandalism
• High wind areas
• At-grade windows
• Green walls, green roofs
• Raised planters

---

Specifications

• Broadest choice of emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
• Emitter spacings: 12”, 18“ and 24”
  (24” spacing available for 0.6 and 0.9 GPH only)
• Pressure compensation range: 14.5 to 58 psi
• Bending radius: 7”
• Maximum system pressure: 58 psi
• Minimum system pressure: 14 psi
• Tubing diameter: 0.66“ OD; 0.56” ID; 0.050” wall
• Coil length: 100’, 250’, 500’, 1,000’
• Minimum filtration: 120 mesh
• Diaphragm made of silicon′
• ISO 9261 Standard Compliance
