Original: $1,380.97
-70%$1,380.97
$414.29The Story

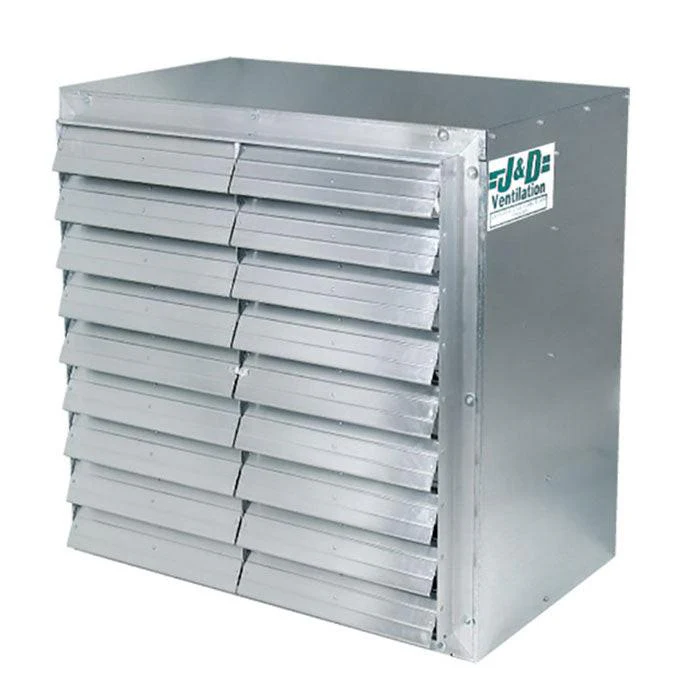

J&D Manufacturing's Wall Master exhaust fan offers high volume output and smooth, efficient operation. The heavy duty 18 gauge galvanized housing is strong, compact, and easy to install. J&D's Wall Master is a dependable fan suited for nearly any application including agricultural buildings, greenhouses, and warehouses.
Wall Master Exhaust Fan Features:
- Available in 36”, 50” and 55” models
- Heavy duty 18 gauge galvanized housing
- Rugged X-frame for added stability on belt drive models
- Aluminum shutters with tie bar to prevent flapping and locking open
- 1” x 2” removable wire mesh guards are hot dip galvanized after welding
- Poly guard clips to reduce vibration for quiet performance
- 3, 4 or 6 blade galvanized propeller is balanced for smooth operation
- Lifetime Warranty on 3 blade cast aluminum props, available on select 50” models
- Bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted for smooth operation and reduced blade fatigue, and are covered by a 3 Year Warranty
- Spring belt tensioning system reduces bounce at startup on all belt driven models
- Optional weather hood available for 36” and 50” models to protect fan from severe wind and weather
- Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings, and are covered by a 2 Year Warranty
| Fan Size | Rough Opening |
|---|---|
| 36" | 41" W x 41" H |
| 50" | 54 3/4" W x 54 3/4" H |
| 55" | 66 1/4" W x 66 1/4" H |
Applications: Dairy, Greenhouse, Industrial, Poultry
Wall Master Exhaust Fans Spec Table
| SKU | Fan Size | CFM | Voltage | Phase | Amps |
|---|---|---|---|---|---|
| VF36GG | 36" | 9,000 | 115/230 | 1 | 4.8/2.4 |
| VF36DM3CF | 36" | 10,000 | 230/460 | 3 | 2.6/1.3 |
| VF36DM | 36" | 10,100 | 115/230 | 1 | 6.1/3.09 |
| VF50GG | 50" | 21,000 | 115/230 | 1 | 9.0/4.5 |
| VF503GG6 | 50" | 21,200 | 230/460 | 3 | 3.2/1.6 |
| VF50GG6 | 50" | 21,300 | 115/230 | 1 | 9.0/4.5 |
| VF55GG | 55" | 24,796 | 115/230 | 1 | 9.0/4.5 |
| VF553GG | 55" | 27,656 | 230/460 | 3 | 3.2/1.6 |
| SKU | Hz | HP | RPM | Prop* |
|---|---|---|---|---|
| VF36GG | 60 | 1/2 | 525 | 4-Glv |
| VF36DM3CF | 60 | 1/2 | 825 | 3-Glv |
| VF36DM | 60 | 1/2 | 825 | 3-Glv |
| VF50GG | 60 | 1 | 575 | 3-Glv |
| VF503GG6 | 60 | 1 | 465 | 6-Glv |
| VF50GG6 | 60 | 1 | 465 | 6-Glv |
| VF55GG | 60 | 1 | 575 | 3-Glv |
| VF553GG | 60 | 1 | 575 | 3-Glv |
*NOTE: 3-Glv= 3 Blade Galvanized, 4-Glv= 4 Blade Galvanized, 6-Glv= 6 Blade Galvanized
Not able to find the size fan or configuration that you are looking for? Give us a call at 888-815-9763 and one of our sales members will be happy to help you find what you need!
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
J&D Manufacturing's Wall Master exhaust fan offers high volume output and smooth, efficient operation. The heavy duty 18 gauge galvanized housing is strong, compact, and easy to install. J&D's Wall Master is a dependable fan suited for nearly any application including agricultural buildings, greenhouses, and warehouses.
Wall Master Exhaust Fan Features:
- Available in 36”, 50” and 55” models
- Heavy duty 18 gauge galvanized housing
- Rugged X-frame for added stability on belt drive models
- Aluminum shutters with tie bar to prevent flapping and locking open
- 1” x 2” removable wire mesh guards are hot dip galvanized after welding
- Poly guard clips to reduce vibration for quiet performance
- 3, 4 or 6 blade galvanized propeller is balanced for smooth operation
- Lifetime Warranty on 3 blade cast aluminum props, available on select 50” models
- Bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted for smooth operation and reduced blade fatigue, and are covered by a 3 Year Warranty
- Spring belt tensioning system reduces bounce at startup on all belt driven models
- Optional weather hood available for 36” and 50” models to protect fan from severe wind and weather
- Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings, and are covered by a 2 Year Warranty
| Fan Size | Rough Opening |
|---|---|
| 36" | 41" W x 41" H |
| 50" | 54 3/4" W x 54 3/4" H |
| 55" | 66 1/4" W x 66 1/4" H |
Applications: Dairy, Greenhouse, Industrial, Poultry
Wall Master Exhaust Fans Spec Table
| SKU | Fan Size | CFM | Voltage | Phase | Amps |
|---|---|---|---|---|---|
| VF36GG | 36" | 9,000 | 115/230 | 1 | 4.8/2.4 |
| VF36DM3CF | 36" | 10,000 | 230/460 | 3 | 2.6/1.3 |
| VF36DM | 36" | 10,100 | 115/230 | 1 | 6.1/3.09 |
| VF50GG | 50" | 21,000 | 115/230 | 1 | 9.0/4.5 |
| VF503GG6 | 50" | 21,200 | 230/460 | 3 | 3.2/1.6 |
| VF50GG6 | 50" | 21,300 | 115/230 | 1 | 9.0/4.5 |
| VF55GG | 55" | 24,796 | 115/230 | 1 | 9.0/4.5 |
| VF553GG | 55" | 27,656 | 230/460 | 3 | 3.2/1.6 |
| SKU | Hz | HP | RPM | Prop* |
|---|---|---|---|---|
| VF36GG | 60 | 1/2 | 525 | 4-Glv |
| VF36DM3CF | 60 | 1/2 | 825 | 3-Glv |
| VF36DM | 60 | 1/2 | 825 | 3-Glv |
| VF50GG | 60 | 1 | 575 | 3-Glv |
| VF503GG6 | 60 | 1 | 465 | 6-Glv |
| VF50GG6 | 60 | 1 | 465 | 6-Glv |
| VF55GG | 60 | 1 | 575 | 3-Glv |
| VF553GG | 60 | 1 | 575 | 3-Glv |
*NOTE: 3-Glv= 3 Blade Galvanized, 4-Glv= 4 Blade Galvanized, 6-Glv= 6 Blade Galvanized
Not able to find the size fan or configuration that you are looking for? Give us a call at 888-815-9763 and one of our sales members will be happy to help you find what you need!
